DongXu Tipper Trailer for Sale

DongXu, the semi trailer specialist in China.

AS the leading semi trailer manufacturer and OEM/ODM supplier in China, we provide perfect customized service for customers, and also provide the optimal solutions for land transporting.

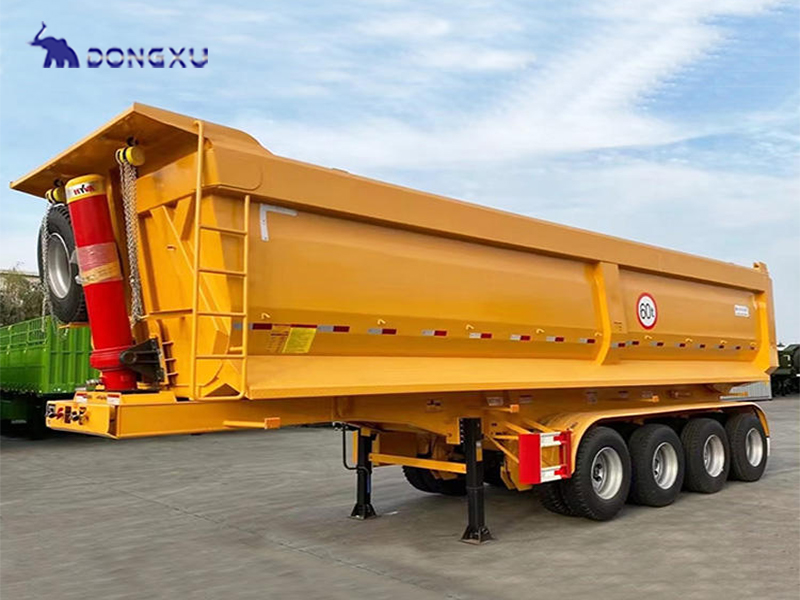

DongXu Tipper Trailer is one of the core products of DongXu semi trailer series, which is mainly used in the field of cargo transport. According to customers‘ needs, various configurations can be provided to meet customers’ transport requirements.

Trailer Name: Tipper Trailer

Trailer Type: Semi Trailer

Tare Weight: About 7-9 Tons

Max Payload: 30-100 Tons

Size: 8500mm*2500mm*3700mm   3 axles

9900mm*2500mm*3700mm   4 axles

11000mm*2500mm*3700mm  5 axles

Axle: 3/4/5 Axle 13T/16T Fuwa Brand

Suspension: Mechanical Suspension / Air Suspension

Landing Gear: JOST

King Pin: JOST 2″(50mm) or 3.5″(90mm)

Tire: 12/16/20 Units, 12R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Spring Leaf: 90mm(W) x 13mm x 10Layers / 100mm(W) x 12mm(T) x 12Layers

Brake Chamber: WABCO

Main Beam: Height500mm, Upper14mm, Middle8mm, Bottom16mm, Q345B Steel.

Painting: Sandblasted, Anti-rust Chassis Surface With 1 Layer of Anti Corrosive Primer and 2 Layers of Top Coats.

Tipping System: 196 hydraulic cylinder

All the parts can be customized as your requirements.
