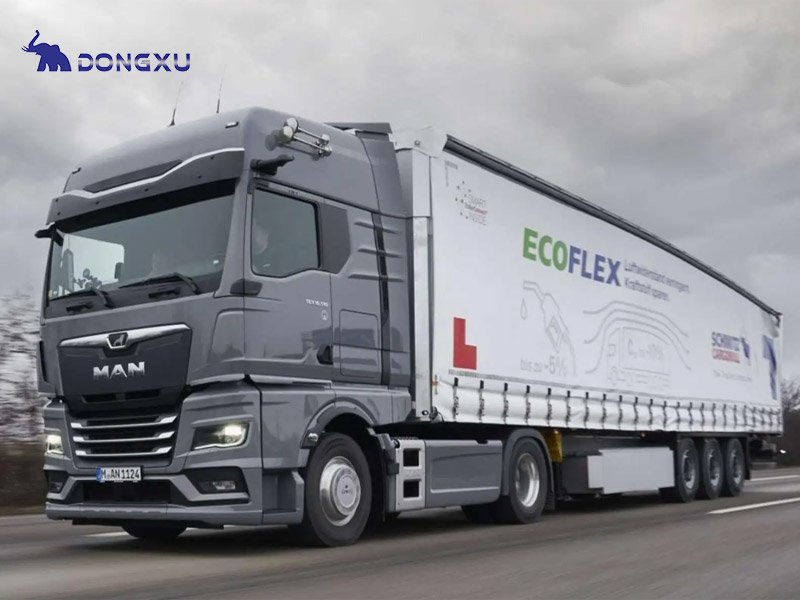

Curtain Side PVC Curtain Cargo Transport Semi Trailer

DongXu, the semi trailer specialist in China.

AS the leading semi trailer manufacturer and OEM/ODM supplier in China, we provide perfect customized service for customers, and also provide the optimal solutions for land transporting.

DongXu Curtain Side Semi Trailer is one of the core products of DongXu semi trailer series, which is mainly used in the field of cargo transport. The side curtains on both sides of the compartment are made from PVC material, which can be slid open and closed, allowing for easy side access during loading and unloading.

According to customers‘ needs, various configurations can be provided to meet customers’ transport requirements.

Trailer Name: Curtain Side PVC Curtain Cargo Transport Semi Trailer

Trailer Type: Semi Trailer

Tare Weight: About 9-11 Tons

Max Payload: More Than 30 Tons

Size: 13500mm*2500mm*4000mm  3 axles

16000mm*2500mm*4000mm  4 axles

Axle: 3/4 Axle 13T/16T Fuwa Brand

Suspension: Mechanical Suspension / Air Suspension

Landing Gear: JOST Brand

King Pin: 2″(50mm) or 3.5″(90mm)

Tire: 12/16 Units, 12R22.5

Rim: 9.00-22.5 or 9.75-22.5

Spring Leaf: 90mm(W) x 13mm x 10Layers / 100mm(W) x 12mm(T) x 12Layers

Brake Chamber: WABCO

Main Beam: Height500mm.

Painting: Sandblasted, Anti-rust Chassis Surface With 1 Layer of Anti Corrosive Primer and 2 Layers of Top Coats.

Side Curtain Material: reinforced PVC curtains

Function: Cargo Transporting

All the parts can be customized as your requirements.
